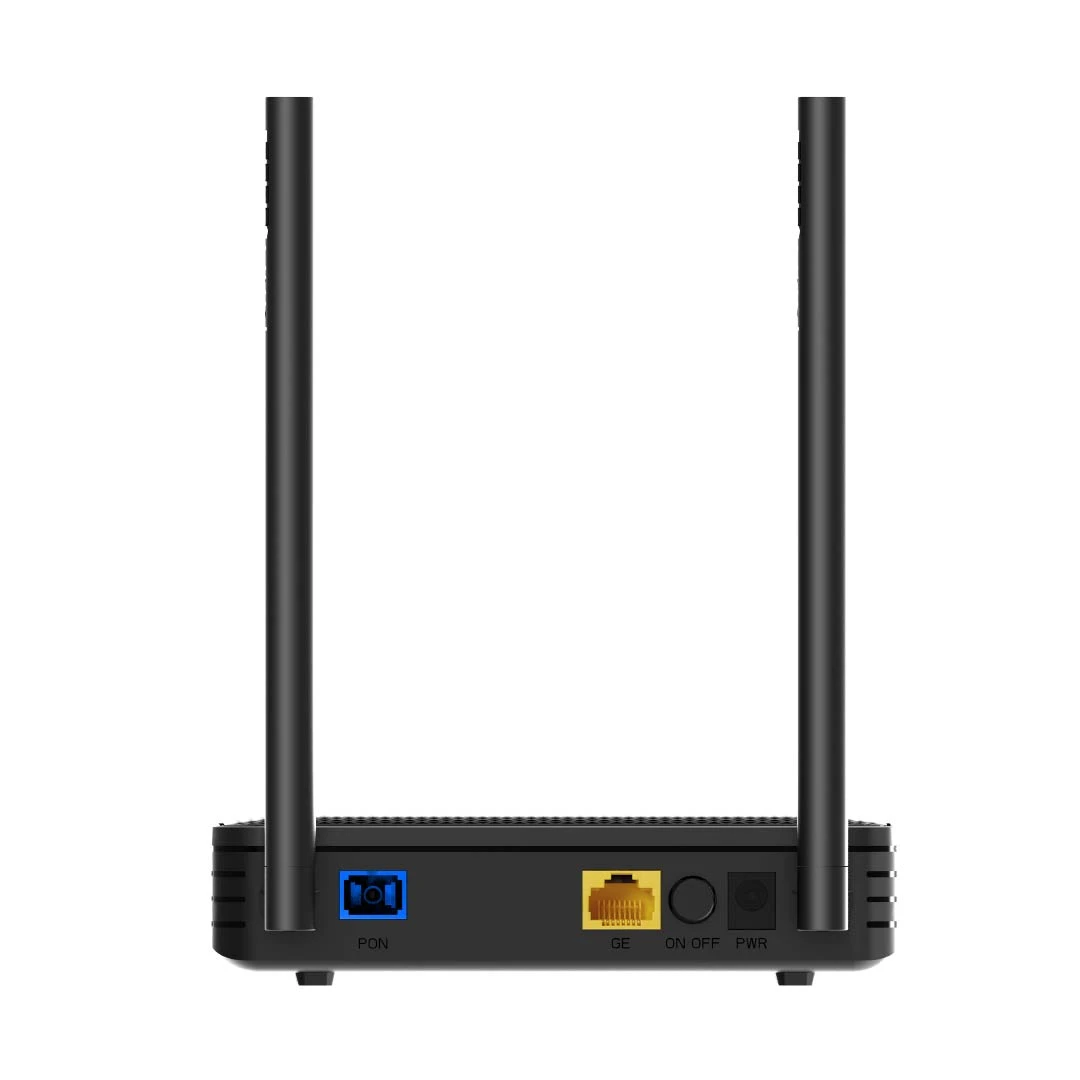

User Interface

1*GE RJ45

2.4GHz: 300Mbps

Ethernet

1*10/100/1000M auto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X

100m distance

Size

130mm(L) X85mm(W) X25mm(H)

Environment

12V/1A DC

power interface size:2.1mm/5.5mm

Power Supply

Power Consumption

＜  8  W

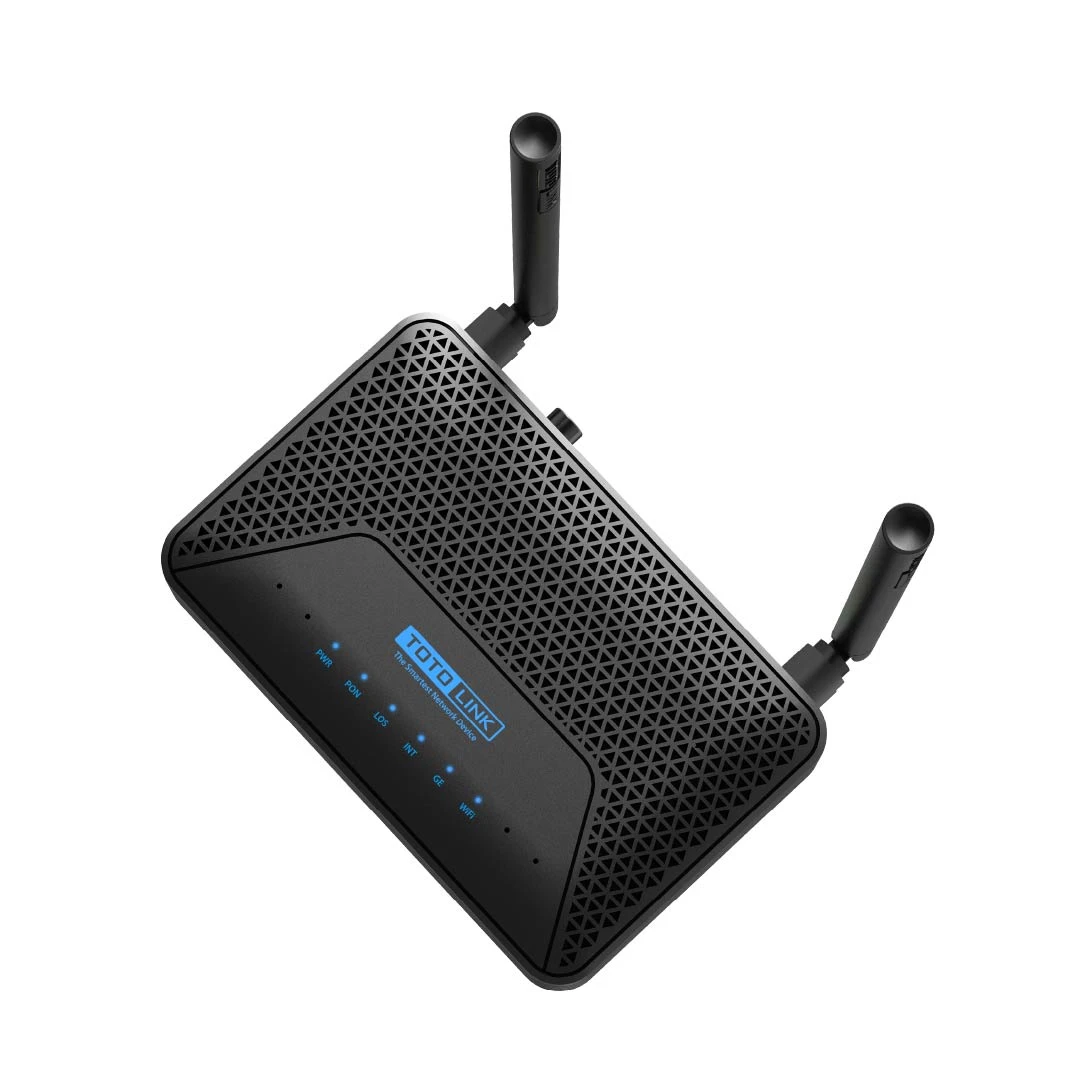

PWR

On: The ONU is power on

Off: The ONU is Power off

PON

On: Success to register to OLTBlinking: In process of registering to OLT

Off: Fail to register to OLT

LOS

On: Optical link is abnormal

Off: Optical in normal

NET

On: ONU can access internet

Off: ONU can not access internet

GE

On:Ethernet connectionis normal Blinking: Data is being transmitted

Off: Ethernet connection is not set up

WiFi

On: WIFI function opens

Blinking： Data is being transmitted

Off: WIFI functions closes
