CAMERA CCTV TP-LINK VIGI C540 4MP Outdoor Full-Color Pan Tilt Network Camera
(0) 0 Ulasan 0 Pesanan 0 Wishlist
Rp1.120.000
Pilih Gudang
Jumlah:
Total Harga :
  (Pajak : )

Link Produk

Deskripsi :

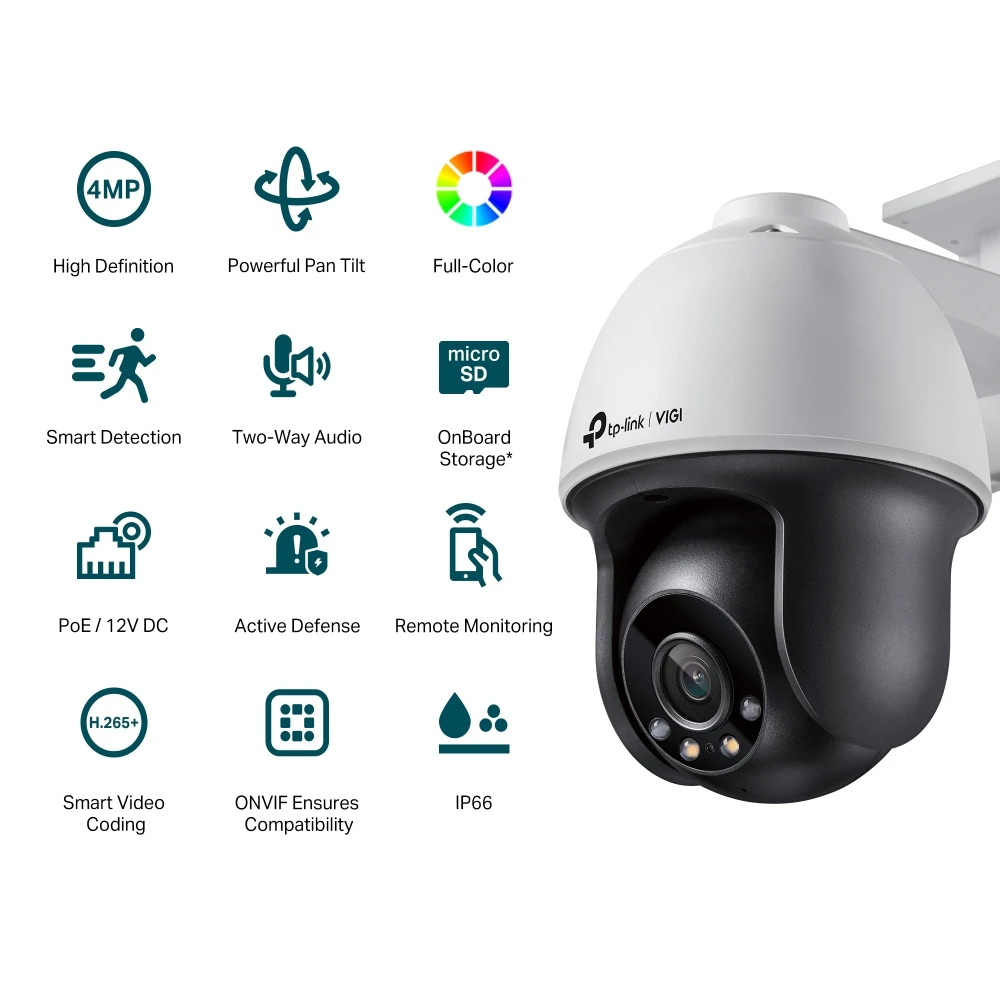

  • 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Waterproof: Reliable IP66 for stable outdoor performance.
  • Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

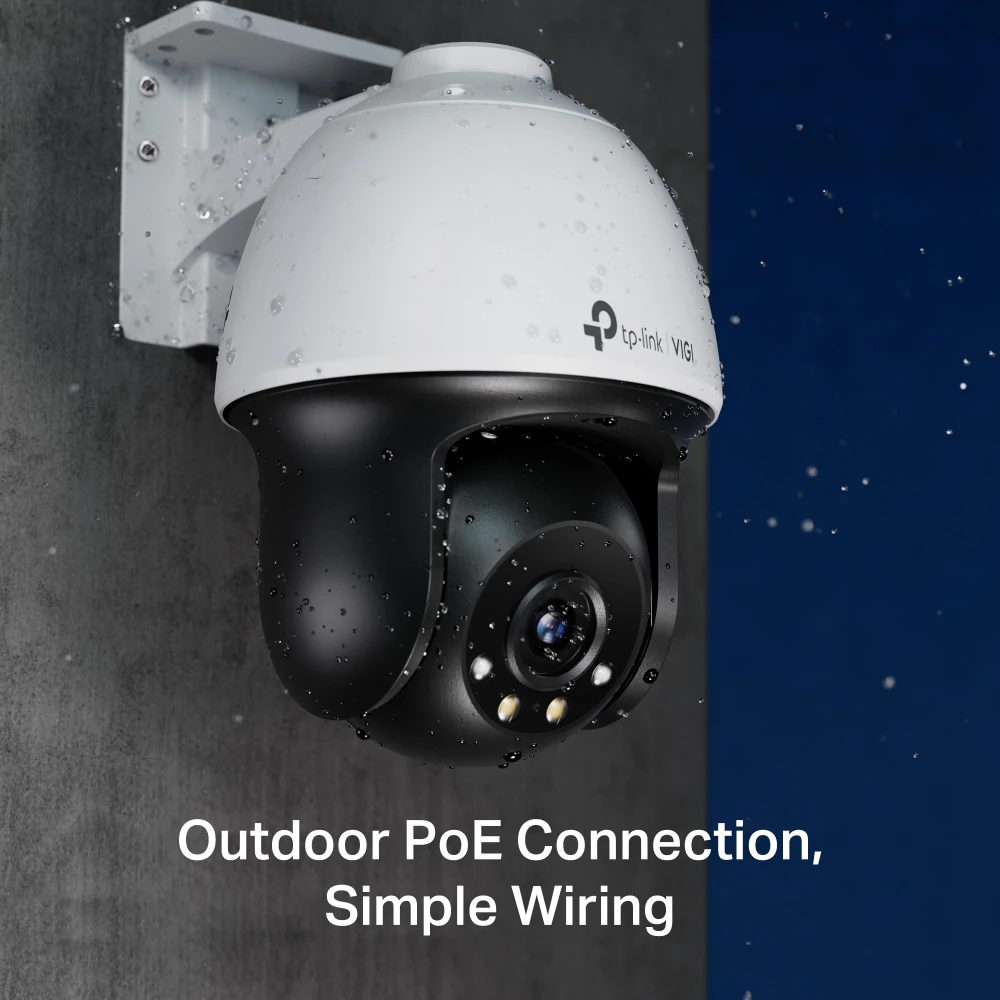

  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

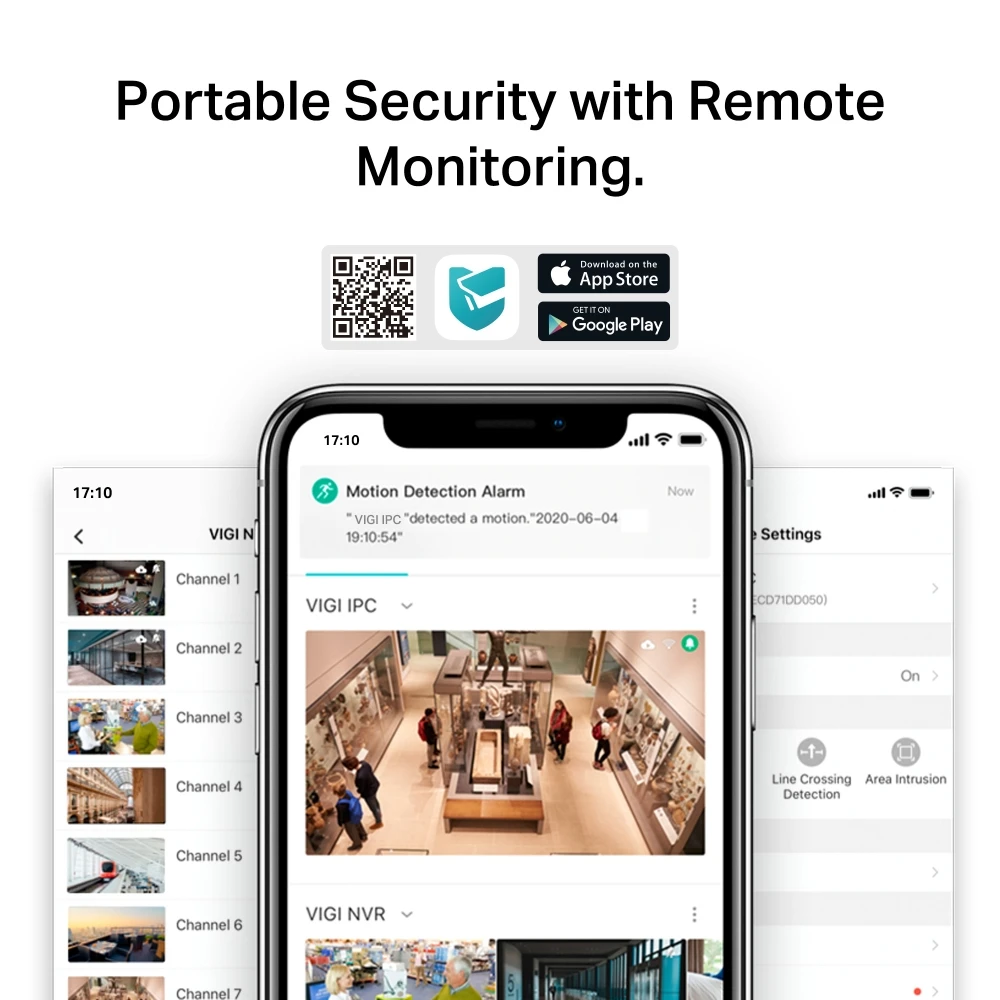

  • VIGI App: Manage your security from the palm of your hand with the VIGI app.



Spesifikasi :

CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP66
IR Working Distance 30m
Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Shutter Speed 1/3 to 1/10000 s
Aperture 4 mm: F1.6
Lens Mount M12
Illumination Distance 30 m
Viewing Angle (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Digital Zoom Yes
Slow Shutter Yes
Minimum Illumination 0 lux with IR/white Light
Day/Night Mechanism IR Cut Filter
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

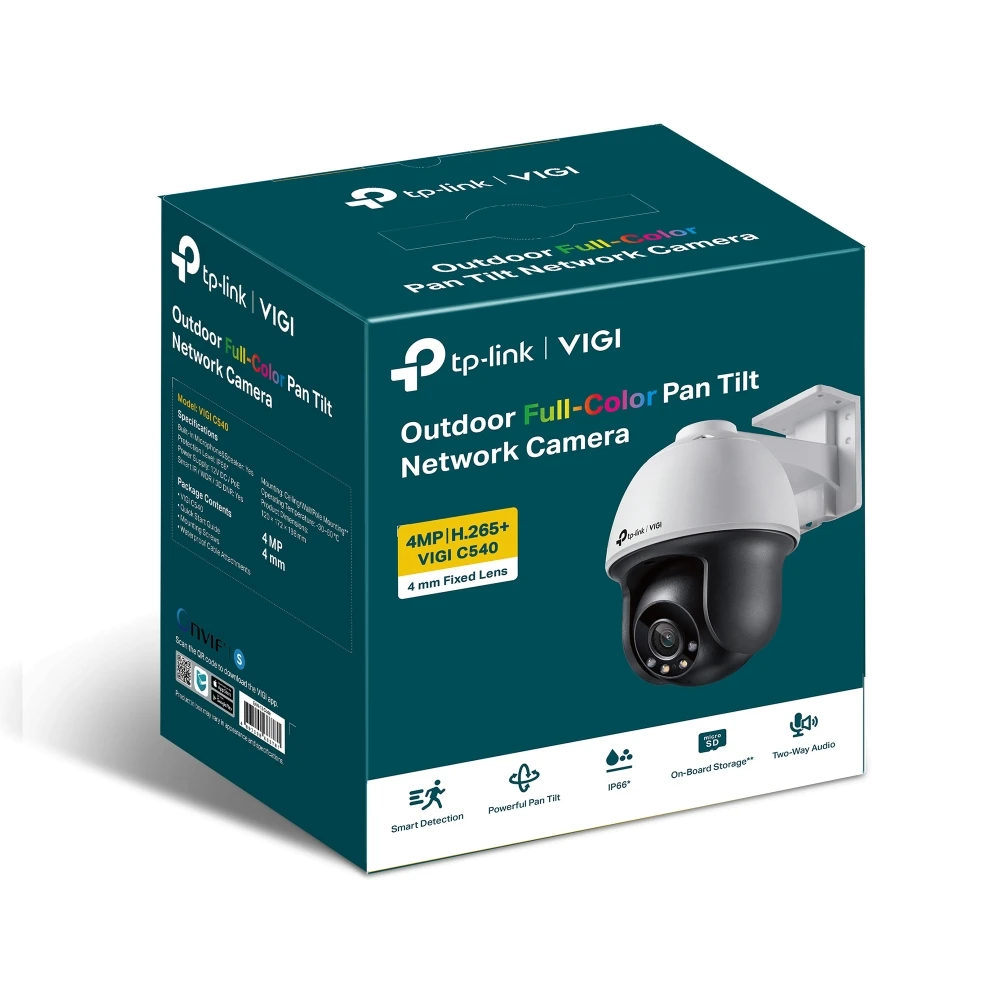

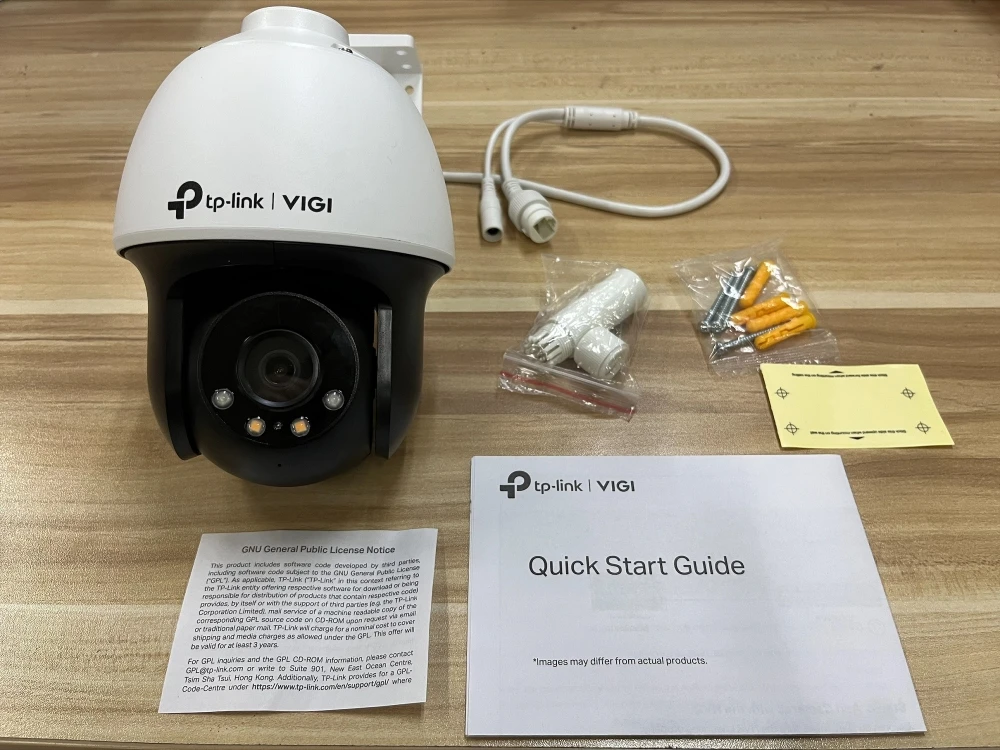

Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Dimensions( H X W X D ) 120 × 172 × 198 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Net Weight 0.62 Kg
Gross Weight 0.98 Kg
Power Consumption 12V DC: Max 14W
PoE: Class 4
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 4)
Protection IP66
Product Dimensions (L x W x H) 120 × 172 × 198 mm
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Alarm N/A
Reset Button Yes
Power DC Power Port
Button Reset Button
Slot Micro SD card
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
ALARM AND EVENT MANAGEMENT
Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
VIDEO/IMAGE
Video Compression Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
PTZ
Pan/tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt Speed Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV 4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount M12
DORI Distance 4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
Range Pan: 0° to 348°
Tilt: 0° to 120°
VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes



Informasi Produk
Berat 1000 gram
Panjang 15 cm
Tinggi 10 cm
Lebar 7 cm
